Humidity, Dew Point and Temperature Transmitters
Roline L series
commercial / industrial
HVAC |
F series
building automation /
energy management systems |
 |
•
Humidity and/or temperature
•
± 3%RH and 0.5ºC / 0.9ºF
accuracy
•
Up to 50°C/122°F at probe
• 2-wire loop powered or
3-wire versions
•
NEMA 4 enclosure
(except space mount model) |
 |
•
Humidity and/or temperature
•
± 2%RH and 0.3ºC / 0.5ºF
accuracy
•
Up to 70°C/158°F at probe
• 2-wire loop powered or
3-wire versions
•
commercial grade enclosure |
FT series
narrow range HVAC |
M2 series
industrial HVAC |
 |
•
Humidity and temperature
•
Normal room temperature
• 2-wire loop powered or
3-wire versions
• NEMA 12 enclosure.
•
Narrow range output signals
for precise measurements in
semiconductor fab areas,
pharmaceutical laboratories |
 |
•
Humidity and temperature
•
Up to 85°C/185°F at probe
•
± 1.5%RH and 0.3ºC / 0.5ºF
accuracy
• 2-wire loop powered or
3-wire versions
• NEMA 4 enclosure
• Plug-in
HygroClip® probe
facilitates field maintenance |
M3 series
industrial HVAC |
HygroFlex series
industrial process control |
 |
•
Humidity and temperature
•
Dew point, mixing ratio,
enthalpy, etc. also available
•
± 1.5%RH and 0.3ºC / 0.5ºF
accuracy
•
Up to 85°C/185°F at probe
•
Analog output signals and
networkable digital output
•
NEMA 4 enclosure
• Plug-in
HygroClip® probe
facilitates field maintenance |
 |
•
Humidity and temperature
•
Dew point, mixing ratio,
enthalpy, etc. also available
•
± 1%RH and 0.2ºC / 0.4ºF
accuracy
•
Up to 200°C/392°F at probe
• Wide range of probes to
satisfy every application
•
Analog output signals and
networkable digital output.
•
NEMA 4 enclosure
• Plug-in
HygroClip® probe
facilitates field maintenance |
Product Equivalence Table
|
For customers who are familiar with our previous
transmitter models, the following table lists the
equivalent or closest current model. |
|
Previous Model |
Configuration |
Current Model |
|
FH Series |
all configurations |
M2 series |
|
HT205W, HT220W, HT225W, I-2100W |
wall mount |
HygroFlex 1 + IW probe |
|
HT205D, HT220D, HT225D, I-2100D |
duct mount |
HygroFlex 1 + IC-3 probe + QMA-15 adapter |
HT205R, HT220R, HT225R, HT250R,
I-2100C |
remote probe |
|
HT255D, HT260D, I-2200D, I-2300D |
duct mount |
HygroFlex 1 + IM3 probe + QMA-15 adapter |
HT255R, HT260R, HT420R, I-2200C,
I-2200S, I-2300C |
remote probe |
|
I-2100P |
compressed air |
HygroFlex 1 + IE-3 probe |
|
I-155C, I-155CI |
tight spaces |
HygroFlex 1 + IC-05 probe |
|
HC321A-W, HC322-W |
wall mount |
HygroFlex 3 + IW probe |
|
HC321A-R, HC322-R |
duct mount |
HygroFlex 3 + IC-3 probe + QMA-15 adapter |
|

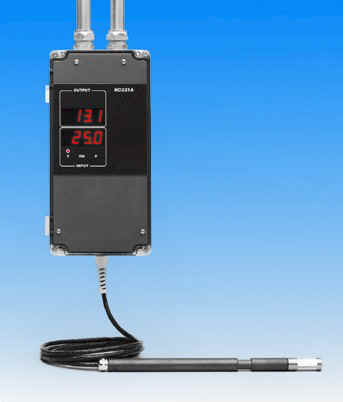

HC322: Dew Point - Temperature Transmitter
|
|
|
|
 |
The HC322 computes dew point (or another humidity parameter)
from the measurement of relative humidity and temperature.
-
Two
output signals: dew point, mixing ratio, wet bulb or
enthalpy, and temperature
-
No
mirror cleaning, no sampling system
-
No
uncertainty between dew and frost
-
Easy-to-perform field calibration
-
Sensors: Rotronic Hygromer™ C94 and Pt100 RTD
-
Large
dual LED display
-
Choose from
two configurations:
HC322A-R (shown here) and HC322A-W (wall mount)
-
Calibration by software uses either % RH or Dew Point as
a reference.
-
RS232
Port
-
User
configurable analog output signals
|
HygroClip
M3 Series: networkable transmitter computes dew point
|
|
|
The programmable M3 series computes dew
point, enthalpy and other
psychrometric values
-
Fully interchangeable
HygroClip probe eliminates maintenance downtime
-
Probe operating
limits:
0...100%RH
and -40...85°C/-40...185°F
-
± 1.5% RH / ± 0.3°C (± 0.5°F) accuracy
-
Unique, cost effective
installation procedure
-
Networkable through
RS485 port
-
Optional display
-
Potentiometer free -
digital calibration
-
On-site
loop validation and calibration with HygroPalm 3 calibrator
|
|
HygroClip
Ex Series: intrinsically safe humidity-temperature probes
|
|
|
Available in 4 different
configurations: surface mount, duct mount, through wall with remote probe
and compressed air.
-
Combined humidity-temperature measurement when used with any HygroFlex
transmitter
-
Can be
factory configured for use as a stand alone humidity only
or temperature only transmitter
-
± 1.0% RH / ± 0.2°C (± 0.4°F) accuracy
-
Potentiometer free -
digital calibration
-
FM
Class I, II, III, Division 1, Groups A-G, T6, Project code 3015571
-
PTB 01
ATEX 2180 , II 1G EEx ia IIC T5, II 2G EEx ia IIC T6
-
Zener
barrier required
|
|
H290D: humidity transmitter for OEM applications
|
|
The H290D consists of a
small open printed circuit board with a probe separated
by a 6.5 ft / 2 m hard-wired cable
- Accuracy at 23°C /
73°F: ± 1.5%RH from
0...100%RH
- Probe
survival limits: -100°F to 392°F/ -75°C to 200°C
- Temperature
compensated humidity signal
- Potentiometer free -
digital calibration
- On-site loop validation and
calibration with HygroPalm 3 calibrator
- 2-wire loop-powered
or 3-wire versions
-
Optional
temperature sensor - RTD or Thermistor - mounted on probe and directly connected to a
3-pos. terminal block
- Optional enclosure
|
|
HygroClip
M3 Series: networkable transmitter computes dew point
|
|
|
The programmable M3 series computes dew
point, enthalpy and other
psychrometric values
-
Fully interchangeable
HygroClip probe eliminates maintenance downtime
-
Probe operating
limits:
0...100%RH
and -40...85°C/-40...185°F
-
± 1.5% RH / ± 0.3°C (± 0.5°F) accuracy
-
Unique, cost effective
installation procedure
-
Networkable through
RS485 port
-
Optional display
-
Potentiometer free -
digital calibration
-
On-site
loop validation and calibration with HygroPalm 3 calibrator
|
|
HygroClip
Ex Series: intrinsically safe humidity-temperature probes
|
|
|
Available in 4 different
configurations: surface mount, duct mount, through wall with remote probe
and compressed air.
-
Combined humidity-temperature measurement when used with any HygroFlex
transmitter
-
Can be
factory configured for use as a stand alone humidity only
or temperature only transmitter
-
± 1.0% RH / ± 0.2°C (± 0.4°F) accuracy
-
Potentiometer free -
digital calibration
-
FM
Class I, II, III, Division 1, Groups A-G, T6, Project code 3015571
-
PTB 01
ATEX 2180 , II 1G EEx ia IIC T5, II 2G EEx ia IIC T6
-
Zener
barrier required
|
