Measurement Solutions

30.04.2013

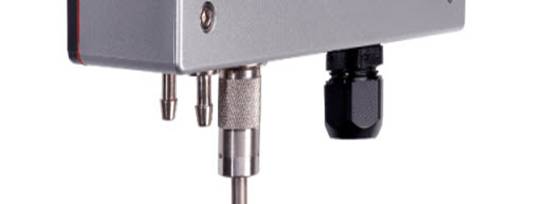

PF4 - The intelligent transmitter for differential pressure and temperature measurement

The new PF4 series is the latest development from ROTRONIC. The differential pressure measurement uses a thermal technique and enables high precision measurements. The Rotronic PF4 differential pressure transmitter allows our customers to add yet another parameter to their monitoring systems within the Rotronic network: an important parameter for the clean room and the semiconductor industry.
With an optional temperature probe, the device is suitable for a wide range of applications.

PF4 features:
- High precision measurement and long term stability
- Fast response time and low hysteresis
- Analogue signals freely configurable
- Integrated relay switch contact
- Large overload range
- Selectable units
- High immunity to dust and humidity

Find more information on our website.

Price
As usual the prices are available on the Dealer Area in the section Price List International.

Offer
Until the end of May, Rotronic offer you a 20% discount on any placed PF4 orders.

Documentation
The data sheet and the short user manual are available in EN/DE/FR/IT in the section Download of the product.
On the same link you can also download the CE declaration.

ROTRONIC AG
Grindelstrasse 6
CH-8303 Bassersdorf
Phone +41 44 838 11 44
Fax +41 44 838 14 87
www.rotronic.com

Contact » Measurement Solutions Homepage »

Delta Ohm works and produces near Padua

50 kilometres from Venice.

The company was founded more than 25 years ago

and had gradually progressed in the field of design

and construction of measuring instruments.

Today its products are exported in more than

60 countries and are appreciated for their quality

and reliability.

Delta Ohm manufacturs instruments for the

measurement of the physical quantities:

          Temperature and Relative humidity

              Pressure

              Air speed

              Light

              Sound level

              pH

              Conductivity

              Dissolved oxygen

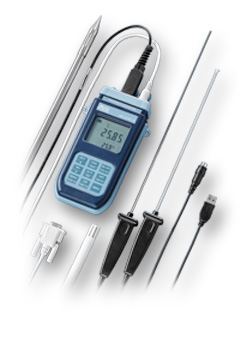

              Hand-held instruments and trasmitters

Delta Ohm produces elements for environmental analysis
    and weather stations:

             Temperature

             Humidity

             Barometric pressure

Ultrasonic anemometers

Rain gauges

Rain detectors

Piranometers

Albedometers

Net irradiance meters

Photometers and Radiometers UVA, UVB

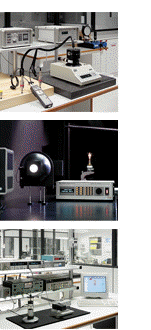

Our metrological laboratories are accredited SIT CALIBRATION CENTRE N°124

for following quantities:

         Temperature

         Humidity

         Pressure

         Acoustics

         Photo/Radiometry

         Air speed

Welcome

Delta Ohm:n HD 2304.0
Painemittari ja sopivat anturit

Esite

Manuaali

MANOMETER - THERMOMETER HD2304.0

Esite

HD2114.2 / HD 2114.0

HD 2114.0
* Micromanometer-Thermometer with 20mbar built-in sensor,

input for SICRAM module PP471 to connect probes TP704 and TP705 series.
* Temperature measurement with Pt100 probe complete with SICRAM module, measuring range -200°C +650°C.

* Storage of maximum, minimum, average value.

* Functions: REL, HOLD, PEAK (with probes TP704 or TP705) and auto power off which can be disabled, IP 67 protection degree.

* Complete with carrying case, 4 batteries.

* The SICRAM module PP471, pressure probes and temperature probes have to be ordered separately.

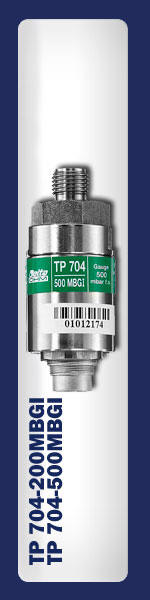

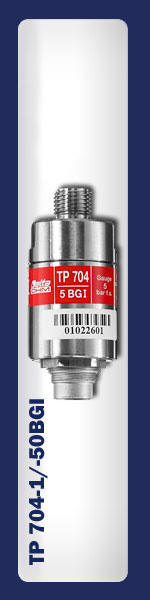

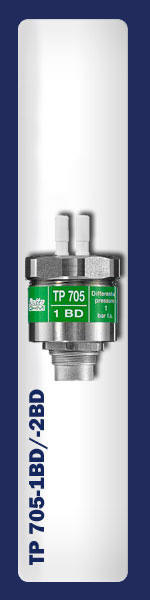

* TP704 and TP705 series pressure probes and TP47 series temperature probes are suitable.

HD 2114.2
* Micromanometer-Thermometer with 20mbar built-in sensor, input for SICRAM module PP471 to connect probes TP704 and TP705 series.
* Temperature measurement with Pt100 probe complete with SICRAM module, measuring range -200°C +650°C.

* Datalogger which stores the maximum, minimum, average value and can store up to 36.000 couples of samples.

* RS232 C/ USB output for data transfer in real time to a PC or printer.

* Functions: REL, HOLD, PEAK (with probes TP704 or TP705 auto power off which can be disabled, IP 67 protection degree.

* Complete with carrying case, instruction manual, 4 batteries, Software DeltaLog9.

* The SICRAM module PP471, pressure probes, temperature probes and cables for downloading have to be ordered separately.
*TP704 and TP705 series pressure probes and TP47¡ series temperature probes are suitable.
